Unity SDK

Install package

Go to Window → Package Management → Package Manager. Click ”+” button, then select “Add package from git URL…”
Enter Git URL: https://github.com/colyseus/colyseus-unity-sdk.git#upm
Click “ADD”

Click to import the example project in order to test the built-in demonstration.

Testing from Unity Editor

Starting with Unity 6000.1.0b1, Unity integrates Multiplayer Play Mode. This mode lets you test your Colyseus-based game with multiple clients inside the Unity Editor, without building the application.

See how to install Multiplayer Play Mode
Alternatively, you can use ParrelSync for older versions of Unity.

SDK Example Project

The example project included in the SDK package does not contain any visual components or UI. It contains the majority of important method calls you would be using in a real-world application.

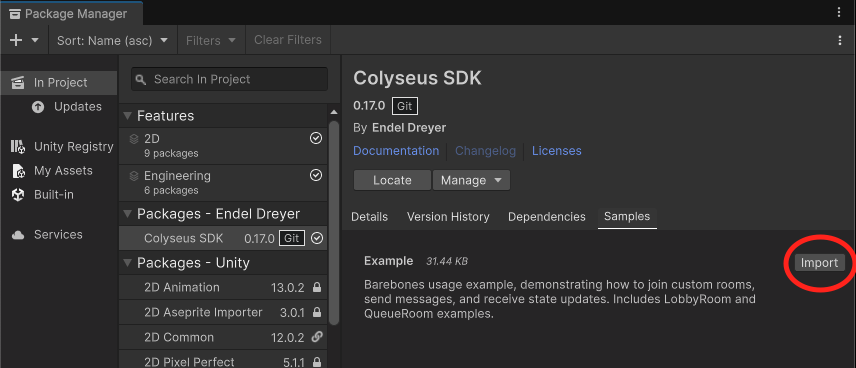

Import Example

Joining into a custom room with Messages and State Synchronization
Joining into a LobbyRoom and listening to its messages
Joining into a QueueRoom and listening to its messages
Consuming a seat reservation from QueueRoom and joining into the match room

Running the test server locally

To run the test server locally, you will need to run the following commands in your terminal:

Terminal

git clone https://github.com/colyseus/sdks-test-server
cd sdks-test-server
npm install
npm start

You can see the source code for the test server here.

You should be able to see the server running at http://localhost:2567, and the example project will be able to connect to it.

Quick Example

This example shows how to connect to a room, listen for state changes via Callbacks, and send messages.

NetworkManager.cs

using UnityEngine;
using Colyseus;
using Colyseus.Schema;

public class NetworkManager : MonoBehaviour
{
    Client client;
    Room<MyRoomState> room;

    async void Start()
    {
        client = new Client("ws://localhost:2567");

        room = await client.JoinOrCreate<MyRoomState>("my_room");
        Debug.Log("Joined room: " + room.Id);

        // Get state callbacks handler
        var callbacks = Callbacks.Get(room);

        // Listen for changes on a state property
        callbacks.Listen(state => state.currentTurn, (currentValue, previousValue) => {
            Debug.Log($"Turn changed: {previousValue} -> {currentValue}");
        });

        // Listen for players being added
        callbacks.OnAdd(state => state.players, (sessionId, player) => {
            Debug.Log($"Player joined: {sessionId}");

            callbacks.Listen(player, p => p.hp, (currentHp, previousHp) => {
                Debug.Log($"Player {sessionId} hp: {currentHp}");
            });
        });

        // Listen for players being removed
        callbacks.OnRemove(state => state.players, (sessionId, player) => {
            Debug.Log($"Player left: {sessionId}");
        });

        // Send a message to the server
        room.Send("move", new { x = 10f, y = 20f });

        // Listen for messages from the server
        room.OnMessage<string>("chat", (message) => {
            Debug.Log("Chat: " + message);
        });
    }

    async void OnDestroy()
    {
        if (room != null) await room.Leave();
    }
}

Waiting for the first state

A resolved join does not mean the state has been synchronized yet. room.State is instantiated when you join, but its collections (players, nested refs, …) are only populated by the first full state sync. That sync arrives a moment later. Code that reads room.State right after joining can find null maps.

WaitForFirstState() covers the gap. This method is the C# analogue of the JavaScript SDK’s room.onStateChange.once(...):

room = await client.JoinOrCreate<MyRoomState>("my_room");

// wait for the first full state sync before reading room.State
await room.WaitForFirstState();

Debug.Log($"{room.State.players.Count} players already in the room");

It resolves immediately when the state has already synchronized, so it is always safe to await, including after reconnections.

⚠️

Never poll for state with Task.Delay on WebGL builds. WebGL has no thread-pool timers, so Task.Delay never resumes and the wait hangs forever. WaitForFirstState() is timer-free: it completes on the message pump and works on every platform, including WebGL.

Registering Callbacks (as in the Quick Example above) is safe before the first sync. Callbacks are driven by the decoder and fire as the initial state decodes. WaitForFirstState() is for code that reads room.State directly.

SDK API

Navigate to the Client SDK for API Reference, and select the C# (Unity) tab.

State Schema Codegen

For compiled languages like C#, you need to generate client-side schema classes that match your server’s state structure. Run the following command from your server directory:

Terminal

npx schema-codegen src/rooms/schema/* --csharp --output ../Assets/Scripts/States/

See the full State Schema Codegen documentation for more options and details.

DynamicSchema (Skip Code Generation)

If you want to skip the code generation step entirely, you can use DynamicSchema instead of generated schema classes. DynamicSchema builds its type metadata at runtime from the server handshake, so no generated files are needed.

NetworkManager.cs

using UnityEngine;
using Colyseus;
using Colyseus.Schema;

public class NetworkManager : MonoBehaviour
{
    Client client;
    Room<DynamicSchema> room;

    async void Start()
    {
        client = new Client("ws://localhost:2567");

        room = await client.JoinOrCreate<DynamicSchema>("my_room");
        Debug.Log("Joined room: " + room.Id);

        // collections are null until the first full state sync
        await room.WaitForFirstState();

        // Access state fields dynamically
        var players = room.State.Get<MapSchema<DynamicSchema>>("players");
        var self = players[room.SessionId];
        var hp = self.Get<int>("hp");

        // Callbacks use string-based property names instead of expressions
        var callbacks = Callbacks.Get(room);

        callbacks.Listen<string>("currentTurn", (currentValue, previousValue) => {
            Debug.Log($"Turn changed: {previousValue} -> {currentValue}");
        });

        callbacks.OnAdd<DynamicSchema>("players", (sessionId, player) => {
            Debug.Log($"Player joined: {sessionId}");

            // Access nested collections
            var items = player.Get<ArraySchema<DynamicSchema>>("items");
        });

        callbacks.OnRemove<DynamicSchema>("players", (sessionId, player) => {
            Debug.Log($"Player left: {sessionId}");
        });
    }

    async void OnDestroy()
    {
        if (room != null) await room.Leave();
    }
}

⚠️

DynamicSchema trades compile-time type safety for convenience. You won’t get IDE autocomplete on state fields, and type errors will only surface at runtime. For production projects, Schema Codegen is recommended.

Message Types Codegen

The same schema-codegen command also generates C# classes for any TypeScript interface containing "Message" in its name. These classes let you use strongly-typed message objects on the frontend.

For example, given the following server-side code:

src/rooms/MyRoom.ts

interface MoveMessage {
  x: number;
  y: number;
}

// ...

messages = {
  move: (client: Client, message: MoveMessage) => {
    // handle move
  }
}

Running the codegen command will automatically generate a matching C# class:

Generated C# output

public class MoveMessage {
    public float x;
    public float y;
}

You can then use these classes when sending and receiving messages on the Unity client:

Sending a message to the server

room.Send("move", new MoveMessage() { x = 1.0f, y = 2.0f });

The same applies to messages sent from the server to the client. For example, given a server-side interface:

src/rooms/MyRoom.ts

interface EventMessage {
  type: string;
  data: string;
}

// ...

onJoin(client: Client) {
  client.send("event", { type: "welcome", data: "Hello!" } as EventMessage);
}

You can listen for it on the Unity client with the generated type:

Receiving a message from the server

room.OnMessage<EventMessage>("event", (message) => {
    Debug.Log(message.type);
    Debug.Log(message.data);
});

Debugging

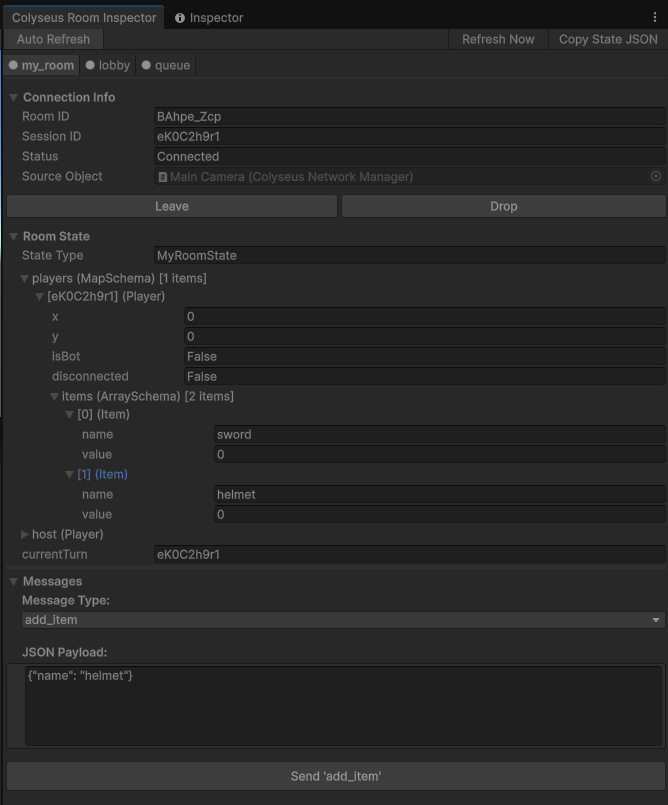

Editor Debug Panel (experimental)

The editor debug panel lets you inspect the room state and messages in real-time during development. You can also simulate high latency, connection drops, and more.

You can enable the Editor Debug Panel at Window → Colyseus → Room Inspector

Editor Debug Panel

Breakpoints

If you set a breakpoint while the WebSocket connection is open, the connection is closed automatically after 3 seconds of inactivity. To prevent the WebSocket connection from dropping, use pingInterval: 0 during development:

app.config.ts

import { defineServer } from "colyseus";
import { WebSocketTransport } from "@colyseus/ws-transport";

const server = defineServer({
    // ...
    transport: new WebSocketTransport({
        pingInterval: 0, // <--- HERE
    }),
    // ...
});

Make sure to have a pingInterval higher than 0 on production. The default pingInterval value is 3000.
